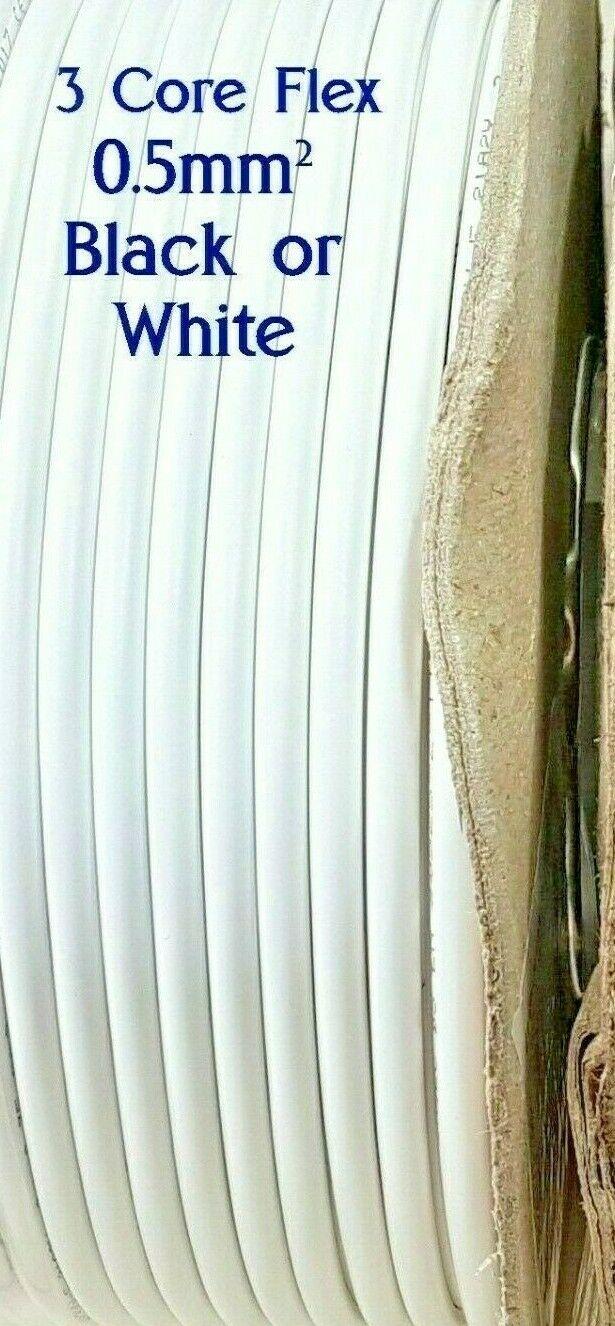

0.5mm² 3 Core Flex White Mains Lighting By the Metre
Maximum Current 3 amps for use up to 720 watts
3 core Blue brown green/yellow 0.5mm² copper conductor size, External diameter 5.6mm
2183Y (Har. code H03VV-F3)
General purpose medium duty flexible PVC cable suitable for use in dry domestic, commercial, indoor and outdoor conditions.
It can be used for general electrical and security applications such as lawnmowers, power tools, table lamps, radios, office equipment, lighting pendants, CCTV, Intruder and Access Control.
Conductor: Material: Stranded plain annealed copper wire
Insulation: Material: PVC
Colours: Blue, brown and yellow / green stripe
Sheath: Material: PVC
Colour: Black or White
Operating temperature: -15°C to 70°C
Voltage test: Core to core : 1,500 V ac/1 min
Voltage rating: 300/300 V
BASEC Approved and Certified to BS6500, CENELEC HD21.5, VDE 281 and BS EN 60228:2005 (previously BS6360)
